Description

Seamless UHD 4K@60Hz HDMI DP Video Switcher With Multiview Function is a HDMI 2.0 and DP 1.2 Seamless Video Switcher with Multiview function. It supports 3x HDMI, 1x DP and 1x USB-C (video only) inputs, one HDMI and one HDBaseT video mirror output. One 3.5mm audio jacket can output analogue stereo audio. User can use Front Buttons or RS232 commands to control the switcher. This video switcher is the nice choice for small smart video conference room and projector link.

Features

Seamless Switching on single display window mode

Support 5 Multiview display modes

Support HDMI 2.0,DP 1.2 input

Scaling output with multiple resolution options, up to 3840x2160@60

Extensive EDID and HDCP control

HDBaseT transmission length up to 70m @1080p, or 40m @4K

Support PCM and bitstream audio format up to 5.1 channel

Audio extraction, 3.5mm L/R output

Provide 24V/10watt PSE ( POC ) for HDBaseT receiver

Support firmware upgrade with U disk by side of the swither

Multiview Function

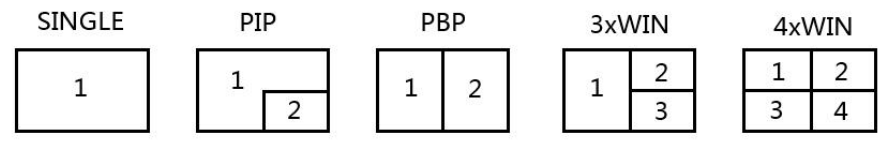

The Switcher support 5 Multiview display modes: SINGLE, PIP, PBP, 3xWIN, 4Xwin

Users can select different operations for different Multiview modes as following:

SINGLE and 4xWIN: Inputs selection

PBP and 3xWIN: Inputs selection, Display Ratio selection

PIP: Inputs selection, Display Ratio selection, Sub window size and position selection
