• Product Item:FLH160P

• 16 SDI over single fiber

• Compatible with DVB-ASI

• Uncompressed CWDM Solution

• Overseas Large Integrator Application

• Category:HD-SDI Fiber Optic Extender

Description

This is a HD-SDI extender with 16 channels over single core fiber optic cable. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

Features

1. 16-ch unibidirectional HD-SDI video with embedded audio and 1000M/100M Ethernet over one fiber

2. Compatible with SD-SDI, DVB-ASI

3. Bandwidth range from 19.4Mb/s to 1.485Gb/s

4. SMPTE 292M (1.485Gb/s) clock recovery

5. support all popular standards for digital video transport such as SMPTE 292M, and SMPTE 259M, SMPTE 297M working at HD-SDI, SD-SDI, ASI respectively

6. Built-in CWDM system, SFP modules for each path

7. OEM fiber connectors, CWDM, DWDM, TDM or mixed solution

8. LED status indicators monitor the critical parameters

9. We could make it as your requested specifications

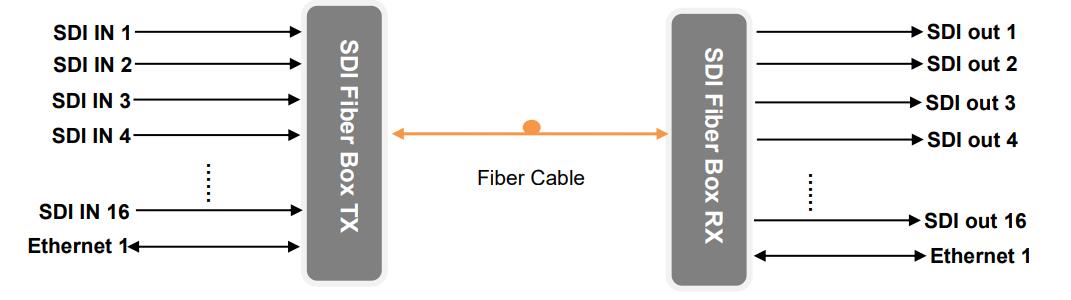

Diagram
