• Product Item:FLH22P

• Broadcast Quality Level

• Compatible with DVB-ASI

• Uncompressed CWDM Solution

• Bidirectional SDI fiber optical transmission

• Category:HD-SDI Fiber Optic Extender

Description

This Two way HD-SDI Electrical to Optical Converter with Gigabit Transport Network has 2-ch bidirectional HD-SDI input and 2-ch bidirectional HD-SDI output in transmitter end and receiver end. It also has 1-ch Gigabit Ethernet function and all functions are transmitted over single core fiber optic cbale. It has internal SFP broadcast HD-SDI optical transceiver inside the housing. Uncompressed technology with CWDM solution.

Features

1. 2-ch bidirectional HD-SDI/ASI video with embedded audio over one fiber optic cable over CWDM

2. Compatible with HD-SDI, SD-SDI, DVB-ASI

3. Bandwidth range from 19.4Mb/s to 1.485Gb/s

4. SMPTE 292M clock recovery

5. support all popular standards for digital video transport such as SMPTE 292M, and SMPTE 259M, SMPTE 297M working at HD-SDI, SD-SDI, ASI respectively

6. Built-in CWDM system, SFP modules for each path, optional ST/SC/FC/LC fiber port

7. Support automatic cable equalization based on the data rate detected

8. LED status indicators monitor the critical parameters

9. We could make it as your requested specifications

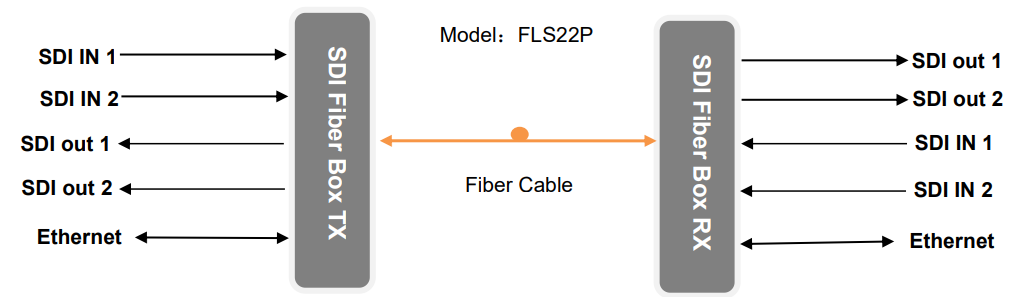

Diagram
