Description

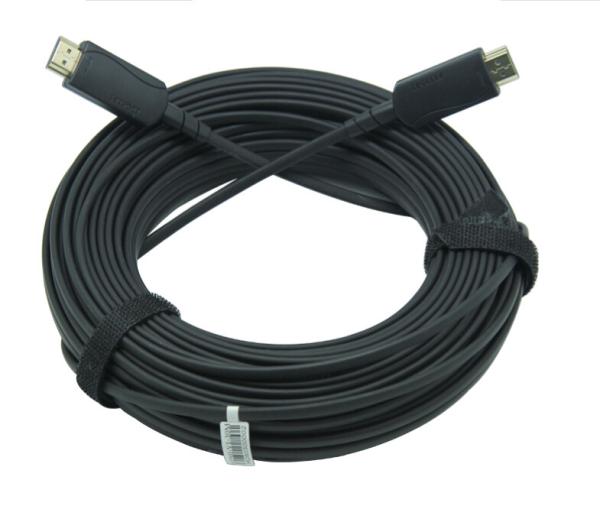

HDMI AOC fiber optic cable has high performance, low power
consumption and low cost.Using optical fiber to replace copper wire
as the high-speed signal transmission medium, HDMI Active Optical
Cable can perfectly transmit 4k UHD image up to more than 100
meters.Compared with the traditional copper wire, HDMI Active
Optical Cable is much longer, softer, more slim, with better signal
quality and perfect EMI/EMCfeature.Compared with other HDMI optical
fiber transmission solution, HDMI Active Optical Cable is easy to
use, has perfect compatibility, and no external power supply
needed.
Features
Up to 100m Maximum Length.(Custom Length Available)
Low Power Consumption: 250mW (max). (Power Required)
Hot Plug and Play
Compatible with HDMI 2.0a standard.
Supports resolutions up
to3840*2160/30p,3840*2160/60P,4096x2160/30P,4096*2160/60P
Supports 3840*2160/60P resolution with color depth up to 24
bits/pixel
Supports HDMI bit-rates up to 6 Gbps/color,18 Gbps total
Support HDCP 2.2
Self-detecting function for EDID information
No loss of signal – delivering crystal clear digital images
instantly.
Hybrid optical cable with fiber and copper wire
Application
Digital Signage
LED signboards in streets and in stadiums
Medical Imaging Equipment
Airplane On-board Video System
Conference Room Video Equipment
Remote monitor for traffic, industrial, military control
LCD, Projector, Plasma display connection
Large video wall system
TV Broadcast Station
Home Theater
Specifications
| Item | Description |
| Units | Transmitter (Source) | Receiver (Sink) |
| HDCP & DDC | HDCP 2.2 Fully Support bi-directional EDID and HDCP communication |
| Video Bandwidth | 6Gbps/x3Channel (max)+ Clock. |
Supported Resolution & Distance | 3840*2160/30p,3840*2160/60P,4096x2160/30P,4096*2160/60P up to 100
meters |
| O/E Converter | 4 channel 850 nm VCSEL array | 4 CH GaAs PD array |
| Connector Type | HDMI type A |
| Cable Type | Hybrid type with OM3 fiber and copper wire |
| Cable Length | 15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance)
Custom length available. |
Cable Outer Diameter
| 5.2mm |
| Jacket Outer Material | PVC/TPU(Custom) |
| Cable Weight TBD | Cable Weight TBD |
| Cable Color TBD | Cable Color TBD |
| Differential Input | 100 ohm (typ) |
| Power Consumption | 250mW (max) |
| Power Supply | Non external power required |
