Overview

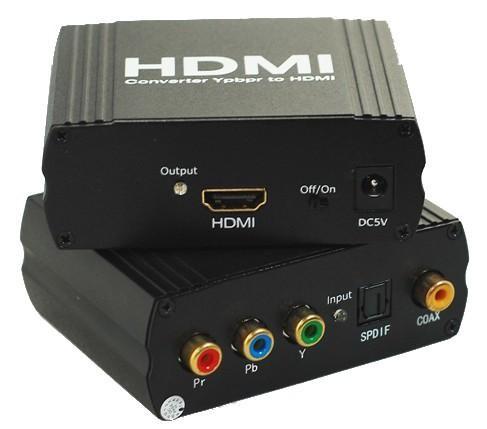

1.YPbPr to HDMI Converter
2.YUV/YPbPr/YCbCRr+SPDIF(Optical+Coax) input signal, One HDMI output
3.Support up to 1080p/60HZ

Features

One YUV/YPbPr/YCbCr+ SPDIF (Optical+ Coax) input signal convert to one HDMI

sink device.

Support video input : Up to capture YPbPr1080p, 330Mbandwidth,50/60H

Support audio SPDIF input : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI output : Support up to 1080p/60HZ, same format as input

Support CEC

Support audio format output : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

LED indication: when source or sink is working, LED relative to is light.

Support output up to 20metres AWG26 cable length

No loss of quality

Installs in minutes

Need DC5V/1A power supply

Specifications

Beijing Fiber Linker specializes in the design, development, supply and manufacture of advanced video and audio transmission equipment over fiber optic, coaxial cable, twisted-pair cable, offering the latest technology mainly in fiber optic.

Our main products: broadcasting video transmitter and receiver over fiber, SDI  fiber extender, HDMI fiber extender, DVI fiber extender, KVM fiber optic extender,  VGA fiber optic extender, fiber media converters, HDMI splitter, HDMI switcher, wire tester, and a full range of accessories. And our products have been extensively used in security surveillance, Intelligent Transportation Systems (ITS ), Broadcast and Multimedia Video, Process Control, Video conferencing ,etc.

We have excellent technical team, and could make reasonable, efficient, and complete solution programs according to individual requirements of customers; also we have perfect team of after-sale services in order to supply timely, accurate technical advice and services of 24-hour for customers problems.

We could meet any demands of OEM & ODM cooperation. Fast delivery, quality goods and timely services are our guarantee to our customers. Good quality and service are the key of long-term cooperation. We take it serious.
