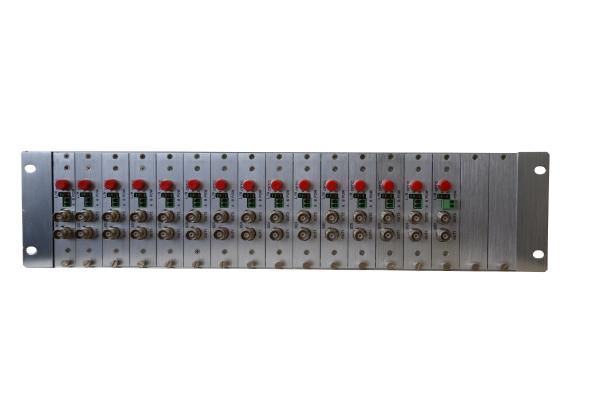

17-ch ASI fiber extender (2U rack mount)

Ask Lasest Price
Brand Name :	Fiber Linker
Model Number :	FLA017
Delivery Time :	7 working days
Payment Terms :	TT in advance

Add to Cart

Product Details
Company Profile

17-ch ASI fiber extender (2U rack mount)

1. Overview

Fiber Linker’s ASI Fiber Extender offer the digital transmission of fully uncompressed SD-SDI/ASI (270Mbps) by single fiber over broadcast quality with audio, RS485/RS232/RS422 serial data, Loopback output and IP Ethernet transmission.It solves the long distance transmission for digital TV program which is one solution for ASI and TS transmission in broadcasting program..

2. Features

Our ASI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution

3. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links

3. Specifications

HD SDI Input		ASI Output
channels	17	Channels	17
Signal standard	M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -270Mb/s)	Signal level	800mV nominal
Reflection loss	>15DB	Rise/drop time	200ps nominal
equalization	1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable	Reflection loss	> 15dB
connector	75Ω BNC	Overshoot	10% amplitude
Jitter: < 0.1UI

Optic		Others
Channels	17	Transmission distance	20KM
Type	single mode (multimode optional)	Operating temperature	-45°C~+50°C
Wavelength	1310nm /1550nm	Power	100~240V to12VDC
Reflection loss	> 15dB	Average time trouble-free	>100000 hours
Connector	FC/PC (SC/PC optional)	Case	2U rack mount

4. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links

5. Ordering Information

17-ch ASI Fiber Extender

FL3017 : 17-ch ASI,17 fibers, FC, 20KM, 2U rackmount.

Keyword: ASI fiber converter , ASI fiber optical transceiver, ASI fiber extender, ASI fiber transmitter
