Feature:

• 1-ch DVI-I/VGA video over one fiber optic
• 1-ch stereo audio equidirectional transmission
• 1-ch RS232 data with the transmission
• 10-bit digital video encoding and compressed transmission technology
• Long-distance transmission of industrial monitoring and large venues, etc.
• Plug and play at any time, basically no need to be adjusted and could be up to image output of high-quality
• Power and indicators of other parameter could monitor system status
• Synchronous optic
• Automatic identification of input video format, receiver output meets industry-standard video
• Use DC-DC power conversion technology, effectively resist the power environmental interference
• Application

• Remote OB Van/Truck Video Feeds

  Broadcast Studio Camera Feeds

  Long-haul Signal Transport

  TV station/video conference

  Lecture Hall Projector Connectivity

  Medical/Surgical Room Broadcast

  Small corporate campus video links

  Building to Building video conference calling

• Technical:

• Video
  No.	1-channel
  Video type	RGB with single and sync H,V
  Input level	0.7Vp-p
  Output level	0.7Vp-p
  Bandwidth (-3 dB)	300MHz
  Bit width	10bit
  Resolution	•1920X1080@60Hz •640X480@60Hz •1024X768@60Hz •800X600@60Hz •1600X1200@60Hz • 1280X1024@60Hz •720X576@60Hz •720X480@60Hz •1440x900@60Hz •1280X720@60Hz •1680x1050@60Hz •1400 x1050@60Hz •1360x768@60Hz
  Interface	HD-15(DVI-I option)

  Audio
  No.	1
  Input/ output level	5Vp-p,unequilibrium
  Connector	Standard 3.5 mm stereo headphone jack

  RS232 indication
  Input/output interface	9-hole standard RS232 socket
  Signal rate	≥115200bps
  Signal level	RS232 standard level

  Optics
  Wavelength	1310nm
  Fiber optic	Single-mode/core
  Transmit optical power	－9.5～－3dBm, average power @850nm
  Max. link loss	12dB(option)
  Return loss	≤10 dB
  Transmission bit rate	240M Hz～1.65G Hz
  Output optical power	10dBm
  Receiver sensitivity	－23dBm average power @850nm
  Data rate	1.25
  Connector	SC (FC/ST option)

  Switch indicator
  Input type	5.08 mm focal length of the Phoenix terminal, switch contact output
  Output type	5.08 mm focal length of the Phoenix terminal, switch contact output, capacity 24VDC/1A
  Reaction speed	Better than0.1 second

  Power and environmental indication
  Freestanding power	5W
  Dimension	237mm * 180mm *28.5mm(high)
  Power adapter	220VAC to 12VDC/1A
  Operating temperature	-40°C to +70°C
  Storage temperature	-40℃~+80℃
  Relative humidity	< 95% (no condensation)

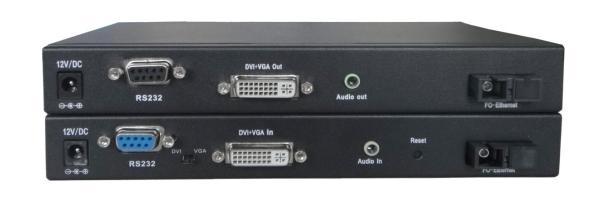

  VGA Fiber Optic Transmitter and Receiver

  FL3201B-T

  Digital Video Fiber Optic Transmitter, 1-ch DVI/VGA video input, 1-ch stereo audio input and 1-ch data RS232, single mode, single fiber, SC/PC fiber connector, headphone jack, RS232 interface, standard 20km, stand-alone type,

  HFL3201B-R

  Digital Video Fiber Optic Receiver, 1-ch DVI/VGA video output, 1-ch stereo audio output, and 1-ch data RS232, single mode, single fiber, SC/PC fiber connector, headphone jack, RS232 interface, standard 20km, stand-alone type,
