1. Overview
FL8000 are designed for transmistting broadcast AES/EBU digital audio over
fiber optic and could simultaneity transmit 1-16 channel broadcast-quality
audio, the forward or the reserved over one fiber.
2. Features
Many different sampling frequency AES/EBU can be input , it is easy
for transmitter and receiver connected with each other
1-16 channels of synchronous or asynchronous AES/EBU signal can be
transmitted at the same time
Transmission distance up to 120 km without relay
All components, including connectors, are ordered from public-known
manufacturers in the world, high stability and reliability
ensurance
Enclosure box material is made of aluminum, elegant appearance,
light weight
PCB boards made with environment friendly Pb-free and RoHS
Compliant
Convenient instructions of LED status indicator, audio activity,
optical link, power supply etc
3. Specifications
Input |
No. of channels | 1 to 16 |
Input Electrical Level | 0.2 to 7.0 Vp-p |
Input sampling frequency | 32KHz to 108KHz |
Input impedance | 110 ohm(balanced) | 75 ohm(unbalanced)selectable |
connector | XLR | BNC |
Output |
No. of channels | 1～16 |
Output Electrical Level | 5 Vp-p |
Output sampling frequency | 48 KHz |
Jitter | <0.005UIP-P |
Rising and falling time | <25ns |
Output impedance | 110ohm(balanced) | 75 ohm unbalanced( selectable) |
Connector | XLR | BNC |
Fiber optic |
Wavelength | 1310 nm(1550 nm optional for CWDM) |
Transmitting power | -10dBm±2 dBm (optional 0±3dBm) |
Receiving power | -32dBm～-3 dBm |
Distance | 0～20 Km (max 120KM) |
Connector | FC/ PC (FC/APC,SC/PC,SC/APC optional) |
Power Supply | AC85V~AC265V ＜20W |
Dimension | 44×433×340(mm) |
4. Applications
Radio Station AES/EBU Signal Transmission
ENG/EFP Serial Digital Audio Transmission
Tape Deck to Digital Audio Tape Transmission
Pre-production and Post-production Serial Digital Audio Links
5. Ordering Information

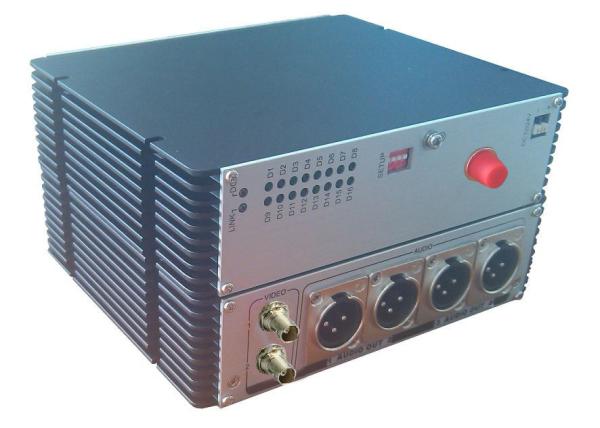

1-16 Broadcast digital AES/EBU Audio Fiber Optic Extender
FL8000-T
1-16 channel AES/EBU digital audio input, single fiber, single
mode, FC/PC fiber connector, XLR audio interface 1U rack mount,
standard 20km (0-120km optional)
FL8000-R
1-16 channel AES/EBU digital audio output, single fiber, single
mode, FC/PC fiber connector, XLR audio interface 1U rack mount,
standard 20km (0-120km optional)
