1. Introduction

The ALL to SDI Converter allows you to upscale Composite,VGA,DVI,HDMI signals to high definition video of SDI formats (HD-SDI SMPTE 292M or 3G-SDI 424M/425M), then output to both ports at the same time.

2. Features

Ø Supports HDMI, DVI, VGA and Composite Video input signals;

Ø Supports two SDI output simultaneously;

Ø Supports SDI output distance up to 100 meters (3G-SDI), or 200 meters (HD-SDI);

Ø Scales any input signal to the HD-SDI or 3G-SDI output signals;

Ø Supports HDMI input timings: VGA@60 ~ SXGA@60 & 480i ~1080p@60 Hz;

Ø Supports VGA/DVI input timings: VGA@60 ~1920×1080@60 Hz;

Ø Supports Composite Video input timings NTSC, PAL,SECAM;

Ø Supports Black screen signal output;

3. Specification

SDI Transmission Rates: 2.970 Gbps, 1.485 Gbps
Video Bandwidth:165 MHz

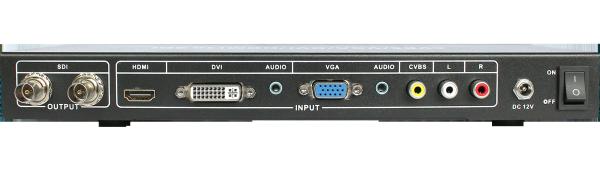

Input Ports: 1×HDMI (Type A connector),

1×DVI with Audio

1x VGA with Audio
1×Composite with R/L
Output port: 2×SDI (HD/3G-SDI),
SDI Cable Distance: 3G/HD/up to 100/200 meters withBELDEN 1694A cable
HDMI Cable Distance Input: 10 m, 8/12-bit
Input HDMI Timing: Support VGA@60, SVGA@60, XGA@60, SXGA@60,
WXGA@60,480i@60,576i@50, 480p@60,576p@50, 720p@50/60, 1080i@50/60,
1080p@24/25/30/50/60;
Input VGA/DVI Timing: Support VGA@60, SVGA@60, XGA@60,
SXGA@60, WXGA@60,1280x720@60,1920×1080@60
Input Composite: Support NTSC, PAL,SECAM
Output Timing Support SDI: SMPTE 292M (1.485 Gbit/s) &SMPTE 424M/425M (2.970 Gbit/s)
ESD Protection Human-body Model:±8kV (air-gap discharge) ±4kV (contact discharge)
Dimensions: 110mm (W)×288mm (D)×32 mm (H)
Weight: 750 g
Chassis Material Metal
Operating Temperature: 0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature: -20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity: 20~90% RH (no condensation)
Power Consumption:5W
